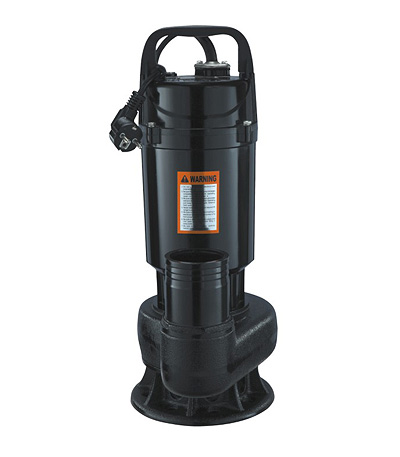

QDX 35T

Condition Of Usage
1.The depth for the electrical pump below the water is no more than 5m
2.The temperature of the water is no higher than 40℃
3.The PH figure of the water is between 6.5～8.5
4.The grain diameter of the solids in the water is no bigger than 2mm
Function And Feature
The clean water submersible pump is vastly used for aquariums mine enter-prises,gardens,family spray and irrigation,watering flower and flush. The portable power irrigation and drainage equipment is compact and light. The float switch can automatically control on and off with the change of the liquid level.The protector in the motor can automatically cut off the power when it overheated or ov-ercurrent thus guarantee the security and reliability of pump's oper-ation even in the atrocious environment

MODEL	P2		DN	DIMENSIONS(mm)			WEGHT(kg)
1～220V/240V	kw	HP	DN	a	b	h	kg
QDX35-7	1.1	1.5	3.0"	127	235	479	18
QDX35-10	1.5	2.0	3.0"	127	235	479	19
QDX45-9	1.5	2.0	4.0"	137	290	481	20

Code"F"means pump assembled with float switch
NO.	Description	Material	Quantity	Remark
1	Screw	SUS201	2
2	Handle	Nylon	1
3	Presser	Neoprene	1
4	Screw	Q235A	4
5	Spring washer	Q235A	4
6	oil plug	Q235A	2
7	O ring	NBR	2
8	Plug	Assembly	1	European plug
9	Screw	SUS201	2
10	Cable clamp	SUS201	1
11	cable presser	Fluorine rubber	1
12	Upper screw cap	ZL102	1
13	O ring	NBR	1
14	insulation wire cap	Assembly	3
15	Capacitor	Assembly	1
16	Cable protector	Fluorine rubber	1
17	Upper bearing seat	HT200	1
18	Undulated ring	65Mn	1
19	bearing	Assembly	1
20	Rotor	Assembly	1
21	bearing	Assembly	1
22	coil	Assembly	1
23	barrel	ZL102	1
24	O ring	NBR	1
25	Mechanical seal	Assembly	1
26	Pump head	HT200	1
27	Outlet	HT200	1
28	Outlet washer	Fluorine rubber	1
29	Surface washer	Q235A	4	φ5
30	Screw	Q235	1
31	Framework oil seal	Assembly	1
32	Pin	SUS201	1
33	Impeller	ZL102	1
34	Spring washer	Q235A	1	φ10
35	Washer	Q235A	1
36	O ring	NBR	1
37	base	HT200	1
38	Screw	Q235	1

Diagram

PERFORMANCE DATA 50Hz

MODEL	P2		DELIVERY n≈2850 r/min
1～220V/240V	kw	HP	Q m3/h Q l/min	0	5	10	15	20	25	30	35	40	45	50	55
1～220V/240V	kw	HP	Q m3/h Q l/min	0	83	167	250	333	415	500	583	667	750	830	916
QDX35-7	1.1	1.5	H (m)	12.1	11.8	11.4	10.8	9.9	9.1	8.1	6.8	5.4	3.7	-	-
QDX35-10	1.5	2.0	H (m)	14.3	13.9	13.5	12.8	11.9	11.1	9.9	8.7	6.8	5.1	-	-
QDX45-9	1.5	2.0	H (m)	16.4	16.1	15.7	15.1	14.0	13.1	11.8	10.6	8.9	7.5	5.5	3.2
