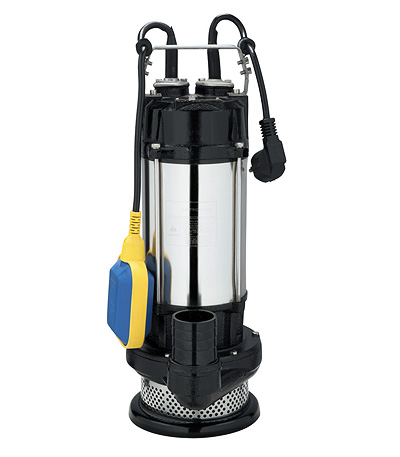

SPA 15T

Condition Of Usage
1.The depth for the electrical pump below the water is no more than 5m
2.The temperature of the water is no higher than of 40℃
3.The PH figure of the water is between 6.5～8.5
4.The grain diameter of the solids in the water is no bigger than 2mm
Function And Feature
The clean water submersible pump is vastly used for aquariums mine enter-prises,gardens,family spray and irrigation,watering flower and flush. The portable power irrigation and drainage equipment is compact and light. The float switch can automatically control on and off with the change of the liquid level.The protector in the motor can automatically cut off the power when it overheated or ov-ercurrent thus guarantee the security and reliability of pump's oper-ation even in the atrocious environment

MODEL	P2		DN	DIMENSIONS(mm)			WEGHT(kg)
1～220V/240V	kw	HP	DN	a	b	h	kg
SPA15-10	0.75	1.0	2.5"	110	235	432	17
SPA15-15	1.1	1.5	2.5"	129	254	439	21
SPA15-20	1.5	2.0	2.5"	126	252	453	22

Code "F" means pump assembled with float switch
NO.	Description	Material	Quantity	Remark
1	screw	SUS201	4
2	plug	Assembly	1	European plug
3	screw	SUS201	4
4	cable clamp	SUS201	2
5	spring washer	SUS201	7
6	cable presser	Fluorine rubber	2
7	cable protector	Fluorine rubber	2
8	cable fixed-plate	SUS201	2
9	cross screw	SUS201	1
10	Handle	SUS201	1
11	Float switch	Assembly	1
12	screw	SUS201	2
13	oil plug	SUS201	2
14	O ring	NBR	2
15	upper bearing seat	HT200	1
16	capacitor	Assembly	1
17	insulation cap	Assembly	3
18	O ring	NBR	1
19	clamp nut	ZCuZn38	1
20	clamp washer	ZCuZn38	1
21	presser	Fluorine rubber	1
22	cross screw	Q235A	1
23	upper bearing seat	HT200	1
24	O ring	NBR	4
25	barrel	SUS201	1
26	coil	Assembly	1
27	undulated washer	65Mn	1
28	bearing	Assembly	1
29	rotor	Assembly	1
30	pin	SUS201	1
31	bearing	Assembly	1
32	hydro-cylinder	HT200	1
33	O ring	NBR	1
34	Mechanical seal	Assembly	1
35	screw	SUS201	10
36	O ring	NBR	1
37	hydro-cylinder cover	HT200	1
38	surface washer	Q235A	1
39	O ring	NBR	1
40	skeleton seal	Assembly	1
41	impeller	ZL102	1
42	spring washer	Q235A	1
43	bolt	Q235A	1
44	pump head	HT200	1
45	O ring	NBR	1
46	outlet	HT200	1
47	base	HT200	1
48	screw	Q235A	3

Diagram

PERFORMANCE DATA 50Hz

MODEL	P2		DELIVERY n≈2850 r/min
1～220V/240V	kw	HP	Q m3/h Q l/min	0	3	6	9	12	15	18	21	24	27
1～220V/240V	kw	HP	Q m3/h Q l/min	0	50	100	150	200	250	300	350	400	450
SPA15-10	0.75	1.0	H(m)	14.2	13.6	13.1	12.4	11.5	10.3	8.4	5.8	3.1	—
SPA15-15	1.1	1.5	H(m)	19.8	19.2	18.4	17.6	16.5	15.1	12.6	8.8	4.6	—
SPA15-20	1.5	2.0	H(m)	24.3	24.1	23.5	22.7	21.5	19.8	16.7	12.2	6.4	—
