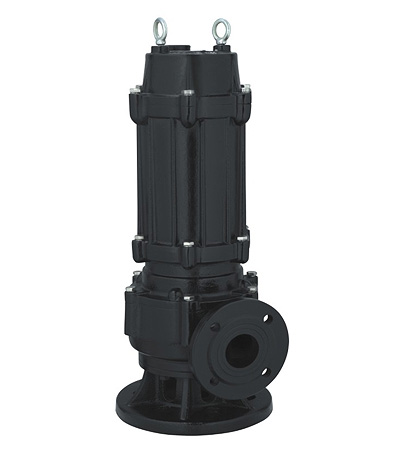

WQ2.5 |
CONDITION OF USAGE
1.The depth for the electrical pump below the water in no more than 5m;
2.The temperature of the water is no higher of 40≧
3.The pH figure of the water is between 5゛9.;
FUNCTION AND FEATURE
WQ series submersible sewage pump conisits of pump, me-chanical seals and motor. Pump is at the lower part of sewage pump, Motor located at the upper part of the motor pump, which is three-phase electric motor. Mechanical seal is between pump and motor and it is a kind of double end mechanical seal "O"Yings are applied in all staticjoints of the submersible pump. WQ submersible sewage pump widely used in agriculture, architecture, mine,environment protection and industry,such as drainage slurry,wastewater,which contained short fibre,wastepaper,sand, and so on.
|
MODEL
|
P2
|
DN
|
DIMENSIONS(mm)
|
WEIGHT(kg)
|
|
1゛220V/240V
|
kw
|
HP
|
a
|
b
|
h
|
kg
|
|
WQ15-9
|
1.1
|
1.5
|
2.5"
|
330
|
φ190
|
515
|
31
|
|
WQ25-10
|
1.5
|
2.0
|
2.5"
|
373
|
φ230
|
591
|
40
|
|
WQ27-15
|
2.2
|
3.0
|
2.5"
|
373
|
φ230
|
591
|
44
|
|
WQ25-22
|
3.0
|
4.0
|
2.5"
|
373
|
φ230
|
613
|
50
|
|
WQ25-28
|
4.0
|
5.5
|
2.5"
|
413
|
φ270
|
680
|
70
|
|
Code ＾F￣ means pump assembled with float switch
|
|
|
|
|
|
|
|
No.
|
Description
|
Material
|
Quantity
|
Remark
|
|
1
|
lift ring
|
Q235A
|
2
|
|
|
2
|
oil plug
|
Q235A
|
2
|
|
|
3
|
O ring
|
NBR
|
2
|
|
|
4
|
screw
|
Q235A
|
4
|
|
|
5
|
spring washer
|
Q235A
|
16
|
|
|
6
|
cable
|
Assembly
|
1
|
|
|
7
|
cable presser
|
Neoprene
|
1
|
|
|
8
|
cable lock bolt
|
ZCuZn38
|
1
|
|
|
9
|
cable stretching washer
|
ZCuZn38
|
1
|
|
|
10
|
upper screw cap
|
HT200
|
1
|
|
|
11
|
O ring
|
NBR
|
1
|
|
|
12
|
cross screw
|
Q235
|
2
|
|
|
13
|
wiring terminal
|
Assembly
|
1
|
|
|
14
|
upper bearing seat
|
HT200
|
1
|
|
|
15
|
O ring
|
NBR
|
1
|
|
|
16
|
barrel
|
HT200
|
1
|
|
|
17
|
coil
|
Assembly
|
1
|
|
|
18
|
undulated washer
|
65Mn
|
1
|
|
|
19
|
bearing
|
Assembly
|
1
|
|
|
20
|
rotor
|
Assembly
|
1
|
|
|
21
|
pin
|
SUS201
|
1
|
|
|
22
|
bearing
|
Assembly
|
2
|
|
|
23
|
screw
|
Q235A
|
4
|
|
|
24
|
hydro cylinder
|
HT200
|
1
|
|
|
25
|
mechanical seal
|
Assembly
|
1
|
|
|
26
|
hydro cylinder
|
HT200
|
1
|
|
|
27
|
screw
|
Q235A
|
4
|
|
|
28
|
mechanical seal
|
Assembly
|
1
|
|
|
29
|
impeller
|
HT200
|
1
|
|
|
30
|
spring washer
|
Q235
|
1
|
|
|
31
|
bolt
|
Q235
|
1
|
|
|
32
|
screw
|
Q235
|
4
|
|
|
33
|
pump head
|
HT200
|
1
|
|
|
34
|
outlet washer
|
fluorine rubber
|
1
|
|
|
35
|
outlet
|
HT200
|
1
|
|
|
36
|
bolt
|
Q235
|
6
|
|
|
37
|
spring washer
|
Q235
|
6
|
|
|
38
|
screw
|
Q235
|
6
|
|
|
39
|
base
|
HT200
|
1
|
|
|
40
|
screw
|
Q235
|
4
|
|
Diagram
PERFORMANCE DATA 50Hz
|
MODEL
|
P2
|
DELIVERY n「2850 r/min
|
|
1゛220V/240V
|
kw
|
HP
|
Q m3/h
Q l/min
|
0
|
6
|
12
|
18
|
24
|
30
|
36
|
42
|
48
|
54
|
|
0
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
|
WQ15-9
|
1.1
|
1.5
|
H(m)
|
12.1
|
10.6
|
8.8
|
6.8
|
4.9
|
2.7
|
！
|
！
|
！
|
！
|
|
WQ25-10
|
1.5
|
2.0
|
H(m)
|
18.1
|
16.2
|
14.4
|
12.6
|
11.3
|
7.5
|
！
|
！
|
！
|
！
|
|
WQ27-15
|
2.2
|
3.0
|
H(m)
|
22.2
|
20.8
|
19.1
|
17.4
|
15.5
|
13.2
|
10.5
|
！
|
！
|
！
|
|
WQ25-22
|
3.0
|
4.0
|
H(m)
|
27.2
|
25.6
|
23.8
|
21.8
|
19.6
|
16.8
|
13.6
|
9.2
|
！
|
！
|
|
WQ25-28
|
4.0
|
5.5
|
H(m)
|
32.5
|
31.6
|
30.7
|
29.2
|
27.4
|
25.5
|
23.3
|
20.6
|
17.2
|
12.9
|
|
|
|
|
